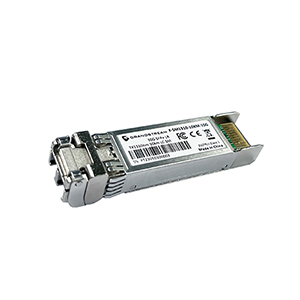

Grandstream F-MM850-300M-10G SFP+ Fiber Module (Multi-Mode, 850nm, 300-Meter, 10Gbps)
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
- AVAILABILITY: Coming Soon
- PRODUCT CODE: NA
- CATEGORY: Networking
Technical Specifications
Grandstream F-MM850-300M-10G Fiber Module Technical Specifications
Fiber Mode
- Multi-Mode Fiber
Connector Type
- Duplex LC
DDM
- Yes, I2C for integrated Digital Diagnostic Monitoring
Nominal Wavelength
- 850nm
Data Rate
- 10Gbps SFP+
Max Power Consumption
- 1W
Transfer Distance
- 0.3km
TX Power
- -6 to -1dBm, ±3dB
RX Power
- -11.1 to 0.5dBm, ±3dB
Operation Voltage
- 3.3V±0.3V
Environmental
- Operation: 0℃ to 70℃, humidity: 5% to 85%
- Storage: -40℃ to 85℃
Unit Weight
- 18.50g
Standards
- SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6
Compliance
- FCC, CE, FDA
-
Data SheetDownload
