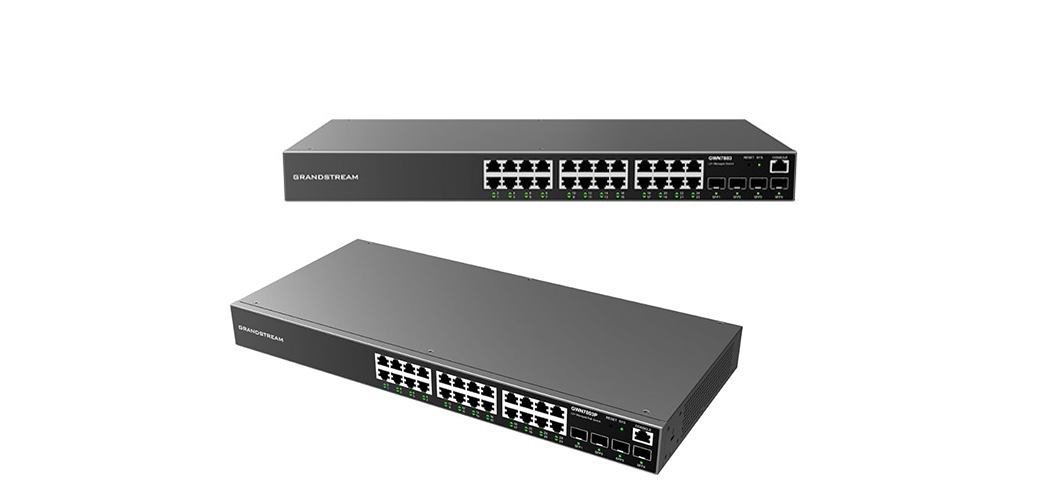

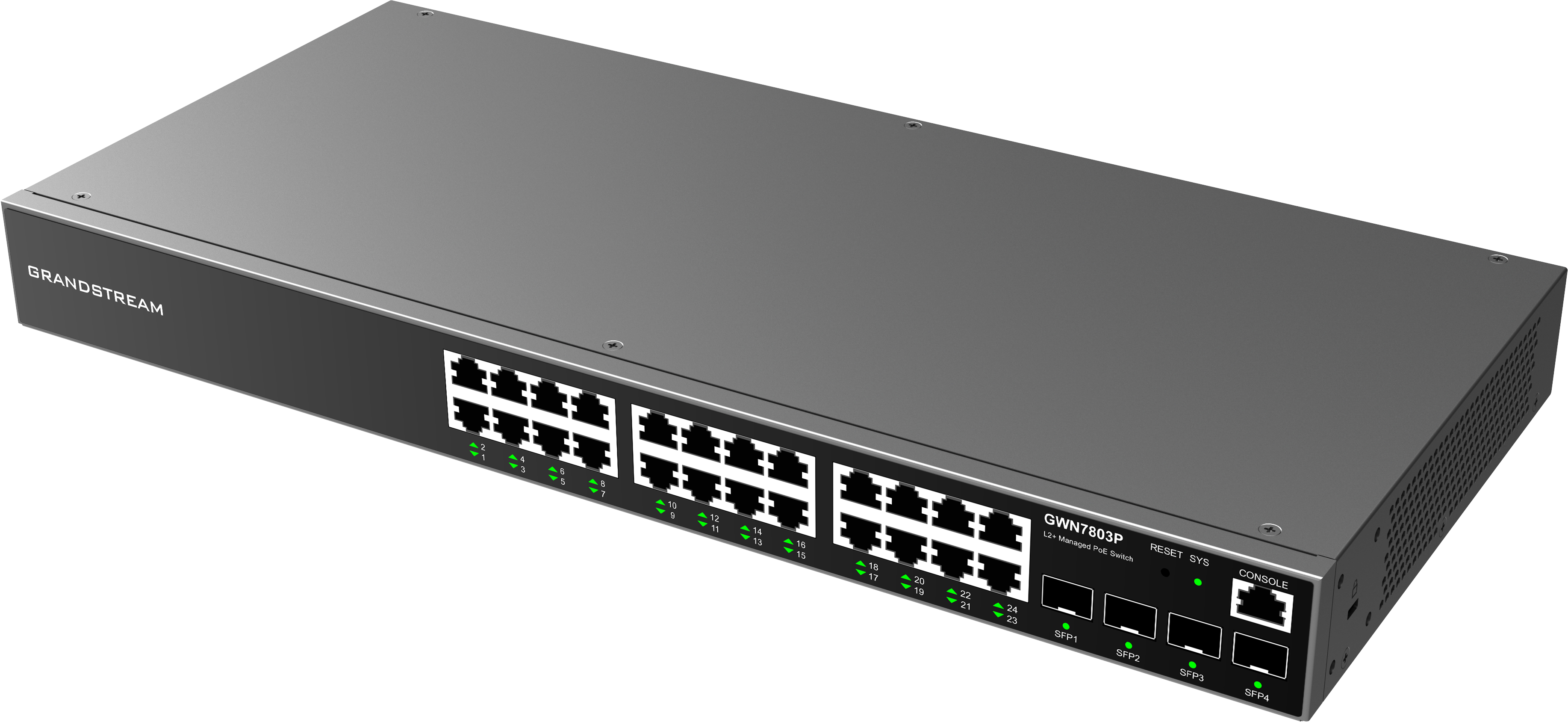

Grandstream GWN7803P Enterprise Layer 2+ Managed 370W PoE+ Network Switch with 24 x 1GigE PoE+, 4 x SFP Ports
The GWN7803P series are Layer 2+
managed network switches that allow small-to-medium enterprises to
build scalable,secure, high performance, and smart business networks that are
fully manageable. It supports advanced VLAN forflexible and sophisticated
traffic segmentation, advanced QoS for prioritization of network traffic, IGMP
Snooping for network performance optimization, and comprehensive security
capabilities against potential attacks
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Manageable
PoE
24 /26 /28 - Ports
SFP Ports / Combo Ports
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7803P |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 24 |
| Gigabit SFP Ports | 4 |
| Console | 1 |
| # of PoE Ports | 24 |
| Integrated Power Supply | 30W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 360W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 28Gbps |
| Switching Capability | 56Gbps |
| Forwarding Rate | 41.66M packets per second |
| Packet Buffer | 4.1MB |
| Switching | 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, wall-mount, or rack-mount (rack-mount brackets included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports |
| Fan | 2 |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) |
| Dimensions | 440mm(L)*200mm(W)*44mm(H) |
-
Data SheetDownload

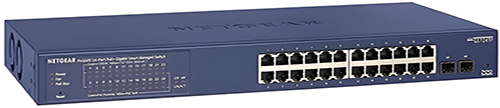

Netgear GS724TP 24-Port Gigabit Ethernet PoE+ (190W) Smart Switch with 2 SFP Ports
24-Port Gigabit Ethernet PoE+ (190W) Smart Switch with 2 SFP Ports

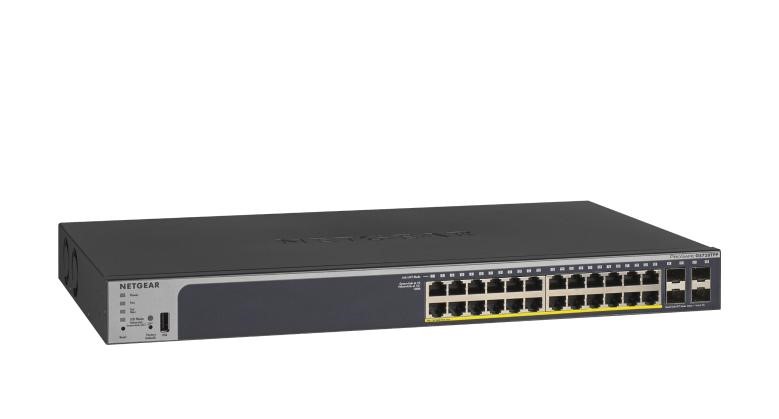

Netgear GS728TPP 24-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
24-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
Netgear GS752TP 48-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
48-Port Gigabit Ethernet PoE+ (380W) Smart Switch with 4 SFP Ports
Netgear GS752TPP 48-Port Gigabit Ethernet PoE+ (760W) Smart Switch with 4 SFP Ports
48-Port Gigabit Ethernet PoE+ (760W) Smart Switch with 4 SFP Ports
Cisco Business CBS250-24T-4G Smart Switch with 24 Port GE, 4x1G SFP Ports
Smart Switch with 24 Port GE, 4x1G SFP Ports
Cisco Business CBS250-8T-D 8-port Gigabit Ethernet Smart Switch
8-port Gigabit Ethernet Smart Switch
Grandstream GWN7801 Enterprise Layer 2+ Managed Network Switch with 8 x 1GigE, 2 x SFP Ports
Enterprise Layer 2+ Managed Network Switch with 8 x 1GigE, 2 x SFP Ports
Grandstream GWN7801P Enterprise Layer 2+ Managed 120W PoE+ Network Switch with 8 x 1GigE PoE+, 2 x SFP Ports
Enterprise Layer 2+ Managed 120W PoE+ Network Switch with 8 x 1GigE PoE+, 2 x SFP Ports

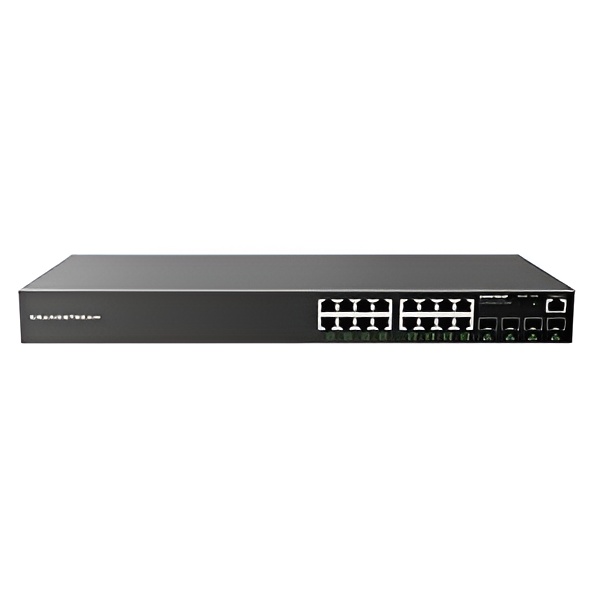

Grandstream GWN7802 Enterprise Layer 2+ Managed Network Switch with 16 x 1GigE, 4 x SFP Ports
Enterprise Layer 2+ Managed Network Switch with 16 x 1GigE, 4 x SFP Ports
Grandstream GWN7802P Enterprise Layer 2+ Managed 240W PoE+ Network Switch with 16 x 1GigE PoE+, 4 x SFP Ports
Enterprise Layer 2+ Managed 240W PoE+ Network Switch with 16 x 1GigE PoE+, 4 x SFP Ports
Grandstream GWN7806P Enterprise Layer 2+ Managed 400W PoE+ Network Switch with 48 x 1GigE PoE+, 6 x 10Gigabit SFP+ Ports
Enterprise Layer 2+ Managed 400W PoE+ Network Switch with 48 x 1GigE PoE+, 6 x 10Gigabit SFP+ Ports

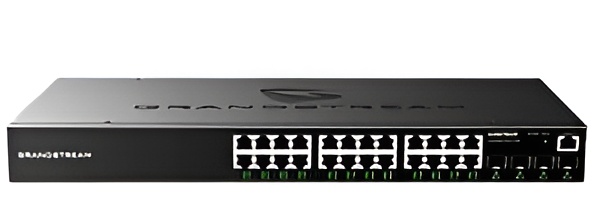

Grandstream GWN7803 Enterprise Layer 2+ Managed Network Switch with 24 x 1GigE , 4 x SFP Ports
