Ubiquiti U6-Mesh-Pro

Rs. 0.00

Ubiquiti’s U6-MESH-PRO is an indoor / outdoor dual band, WiFi 6 (802.11ax) mesh access point featuring 2x Gigabit Ethernet ports, 4 spacial streams and integrated high power 8dBi antennas. It delivers an aggregate data rate of up to 3Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands.

AVAILABILITY: In Stock
PRODUCT CODE: NA
CATEGORY: Networking

Wi-Fi 6 (IEEE 802.11ax)

Indoor/Outdoor

Wall Mounted

Pole Mounted

Add to Cart

Technical Specifications

Dimensions

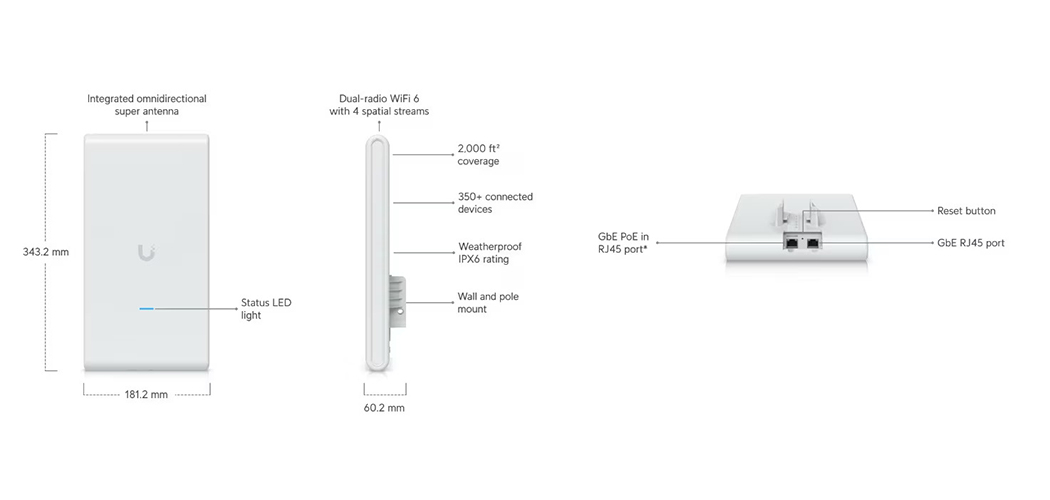

343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")

WiFi Standard

WiFi 6

Spatial Streams

Coverage Area

185 m² (2,000 ft²)

Max. Client Count

250+

Uplink

GbE

Mounting

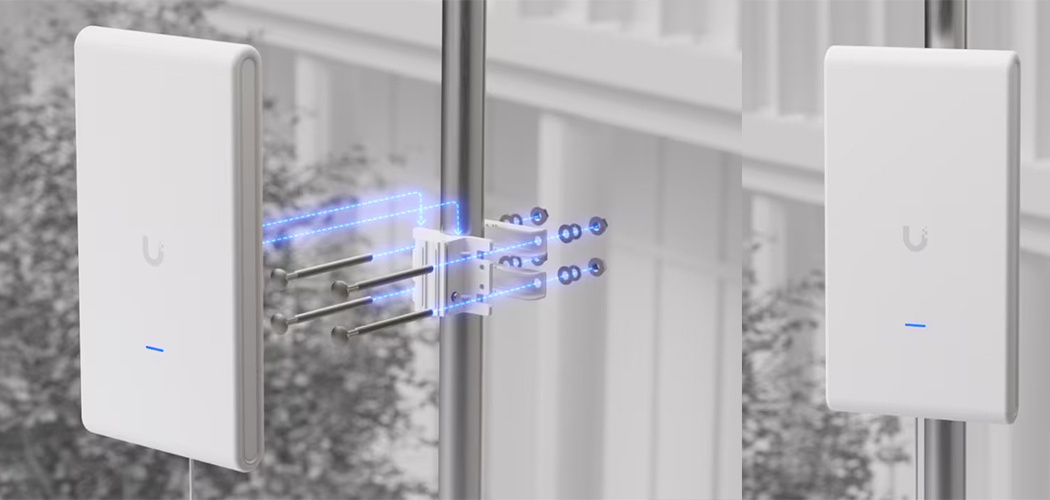

Wall, Pole (Mounts Included)

Weatherproofing

IPX6

Power Method

PoE

MIMO

5 GHz

2 x 2 (DL/UL MU MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

2.4 Gbps (BW160)

2.4 GHz

573.5 Mbps (BW40)

Antenna Gain

5 GHz

8 dBi

2.4 GHz

8 dBi

Max. TX Power

5 GHz

27 dBm

2.4 GHz

22 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Max. Power Consumption

Includes PoE Adapter

✓

Supported Voltage Range

42.5—57V DC

Networking Interface

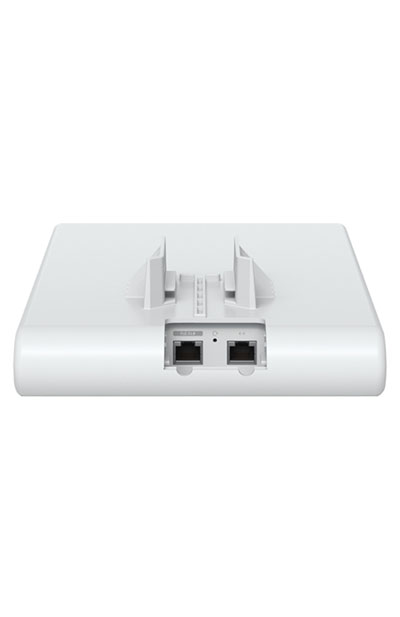

(2) GbE RJ45 ports

Weight

819 g (1.8 lb)

Pole Mount Diameter

1–2.5" (25–63.5 mm)

Management

Ethernet WiFi

Enclosure Material

UV-stabilized polycarbonate

Mount Material

Aluminum alloy, steel

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Application Requirements

UniFi Network

Version 8.1.127 and later
