Dintek 1101-04046 PowerMAX500 4P Cat.6 U/UTP 23AWG LSZH Dca Cable - Gray

Rs. 0.00

DINTEK PowerMAX500™ Cat.6 U/UTP LSZH Cable is a high-performance, unshielded network cable that exceeds Cat.6 specifications as per ANSI/TIA and ISO/IEC standards. Featuring a Low Smoke Zero Halogen (LSZH) jacket, it’s ideal for safety-critical environments. When used with DINTEK’s compliant patch panels, keystones, and patch cords, it forms a complete end-to-end solution optimized for Gigabit Ethernet and future-ready data transmission.

AVAILABILITY: Coming Soon
PRODUCT CODE: NA
CATEGORY: Networking

Category-6

Sheath Material-LSZH/LS0H

U/UTP

Cable Box-305m

Add to Cart

Technical Specifications

Technical Specifications

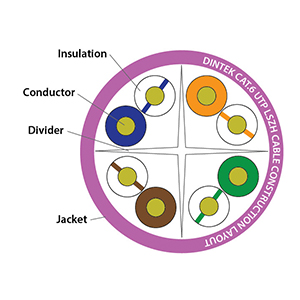

Construction
Conductor
Material	Pure Annealed Copper
Wire Size	23AWG
Strand Type	Solid Core
No. Of Pairs	4P
Insulation
Material	Polyethylene
Thickness	0.21mm ± 0.01mm
Diameter	0.98mm ± 0.05mm
Colors	Blue/White \| Orange/White \| Green/White \| Brown/White
Pair Foil Wrap	None
Jacket
Material	LSZH
Thickness	0.425 mm ± 0.025mm
Diameter	5.70mm ± 0.3mm
Color	Gray
CPR Reaction To Fire Classification	Dca,s2,d2,a1
Foil Shield	None
Braided Shield	None
Physical Ranges
Jacket
Cold Bend Test	-20 ± 2°C x 4hrs no crack
Min. Bending Radius	Min. 4 x Cable Diameter
Max. Pulling Tension	110N
Installation Temperature	0℃ to +50℃
Operating Temperature	-20℃ to +60℃
Electrical
Conductor Resistance	Max. 9.38 Ω/100m at 20°C
DC Resistance Unbalance	Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance	Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation	DC 1.0 KV for 1 min
Insulation Resistance Test (500V)	Min. 5000 MΩ/Km at 20°C
Mutual Capacitance	Max. 5600 pF/100m at 1 kHz
Impedance 1 ~ 250Mhz	100Ω ± 5%
Nominal Velocity Of Propagation	67%
