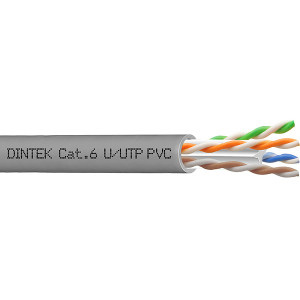

Dintek 1101-04304/1101-04305 PowerMAX 4P Cat.6 U/UTP 24AWG PVC Cable Box - 305m (Color - Gray/Blue)

Rs. 0.00

DINTEK PowerMAX Cat.6 U/UTP 305m PVC Cable is a high-performance unshielded twisted pair cable designed to exceed ANSI/TIA and ISO/IEC Cat.6/Class E standards. It supports data transmission up to and beyond 1 Gigabit Ethernet, making it ideal for high-speed networking. The cable features 24AWG solid copper conductors, a durable PVC outer jacket, and is compatible with DINTEK’s Cat.6 patch panels, keystone jacks, and patch cords, ensuring reliable end-to-end connectivity for structured cabling systems. Available in gray or blue.

AVAILABILITY: Coming Soon
PRODUCT CODE: NA
CATEGORY: Networking

Category-6

Sheath Material-PVC

U/UTP

Cable Box-305m

Add to Cart

Technical Specifications

Technical Specifications

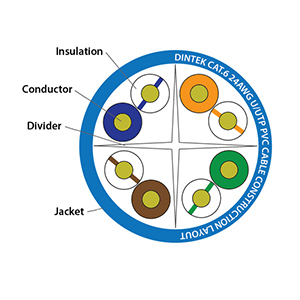

Construction
Conductor
Material	Pure Annealed Copper
Wire Size	24AWG
Strand Type	Solid Core
No. Of Pairs	4P
Insulation
Material	Polyethylene
Thickness	0.212mm ± 0.01mm
Diameter	0.95mm ± 0.1mm
Colors	Blue/White \| Orange/White \| Green/White \| Brown/White
Pair Foil Wrap	None
Unaged Tensile Strength	Min. 1.683 Kgf/mm²
Jacket
Material	PVC
Thickness	0.5 mm ± 0.05mm
Diameter	5.7mm ± 0.3mm
Color	Blue
Jacket Rating	CM
Foil Shield	None
Braided Shield	None
Physical Ranges
Jacket
Cold Bend Test	-20 ± 2°C x 4hrs no crack
Min. Bending Radius	Min. 4 x Cable Diameter
Max. Pulling Tension	110N
Installation Temperature	0℃ to +50℃
Operating Temperature	-20℃ to +60℃
Electrical
Conductor Resistance	Max. 9.38 Ω/100m at 20°C
DC Resistance Unbalance	Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance	Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation	DC 1 KV for 1 min
Insulation Resistance Test (500V)	Min. 5000 MΩ/Km at 20°C
Mutual Capacitance	Max. 5600 pF/100m at 1 kHz
Impedance 1~250MHz	100Ω ± 15%
Nominal Velocity Of Propagation	67%
