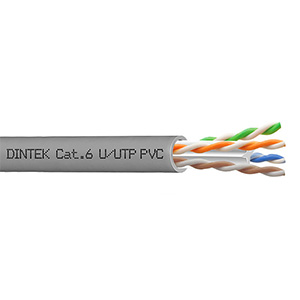

Dintek 1101-04032/1101-04007 PowerMAX500 4P Cat.6 U/UTP 23AWG PVC Cable Box - 305m (Color - Gray/Blue)

Rs. 0.00

DINTEK PowerMAX500™ Cat.6 U/UTP PVC Cable is a high-performance unshielded Ethernet cable designed to exceed ANSI/TIA and ISO/IEC Cat.6/Class E standards. Ideal for high-speed data transmission, it forms part of a complete end-to-end solution when used with DINTEK’s compliant patch panels, keystones, and patch cords. This cable ensures reliable 1 Gigabit Ethernet performance with extra headroom for future network upgrades.

AVAILABILITY: Pre Order
PRODUCT CODE: NA
CATEGORY: Networking

Category-6

Sheath Material-PVC

U/UTP

Cable Box-305m

Add to Cart

Technical Specifications

Technical Specifications

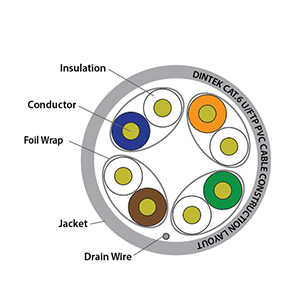

Construction
Conductor
Material	Pure Annealed Copper
Wire Size	23AWG
Strand Type	Solid Core
No. Of Pairs	4P
Insulation
Material	Polyethylene
Thickness	0.21mm ± 0.01mm
Diameter	0.98mm ± 0.05mm
Colors	Blue/White \| Orange/White \| Green/White \| Brown/White
Pair Foil Wrap	None
Jacket
Material	PVC
Thickness	0.5 mm ± 0.05mm
Diameter	5.70mm ± 0.3mm
Color	Gray
Jacket Rating	CM
Foil Shield	None
Braided Shield	None
Physical Ranges
Jacket
Cold Bend Test	-20 ± 2°C x 4hrs no crack
Min. Bending Radius	Min. 4 x Cable Diameter
Max. Pulling Tension	110N
Installation Temperature	0°C to +50°C
Operating Temperature	-20°C to +60°C
Electrical
Conductor Resistance	Max. 9.38 Ω/100m at 20℃
DC Resistance Unbalance	Max. 2% at 20°C
Pair-to-Ground Capacitance Unbalance	Max. 1600 pF/km at 1 kHz
Dielectric Strength of Insulation	DC 1 kV for 1 min
Insulation Resistance Test (500V)	Min. 5000 MΩ/Km at 20°C
Mutual Capacitance	Max. 5600 pF/100m at 1 kHz
Impedance 1~250MHz	100Ω ± 15%
Nominal Velocity Of Propagation	67%
