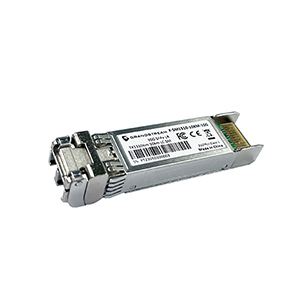

Grandstream F-SM1310-10KM-10G SFP+ Fiber Module (Single-Mode, 1310nm, 10-Kilometer, 10Gbps)
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
- AVAILABILITY: Pre Order
- PRODUCT CODE: NA
- CATEGORY: Networking
Technical Specifications
| Details | |
|---|---|
| Manufacturer's Code | F-SM1310-10KM-10G |
| Fiber Mode | Single-Mode Fibre |
| Connector Type | Duplex LC |
| DDM | Yes, I2C for integrated Digital Diagnostic Monitoring |
| Nominal Wavelength | 1310nm |
| Data Rate | 10Gbps SFP+ |
| Max Power Consumption | 1W |
| Transfer Distance | 10km |
| TX Power | -8.2 to 0.5dBm, ±3dB |
| RX Power | -14.4 to 0.5dBm, ±3dB |
| Operation Voltage | 3.3V±0.3V |
| Environmental | Operation: 0℃ to 70℃, humidity: 5% to 85%, Storage: -40℃ to 85℃ |
| Unit Weight | 18.50g |
| Standards | SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6 |
| Compliance | FCC, CE, FDA |
-
Data SheetDownload
