Ubiquiti U6-Enterprise

Rs. 0.00

Ubiquiti U6 Enterprise Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.

Offers tri‑band WiFi 6E (2.4 GHz, 5 GHz, 6 GHz) with 4×4 MU‑MIMO on both 5 and 6 GHz to deliver ultra‑high throughput and capacity.
Designed to support 600+ simultaneous clients, making it ideal for offices, auditoriums, conference facilities, or other densely populated spaces.
Covers approximately 140 m² (1,500 ft²) under typical deployment conditions.

AVAILABILITY: Coming Soon
PRODUCT CODE: NA
CATEGORY: Networking

Wi-Fi 6 (IEEE 802.11ax)

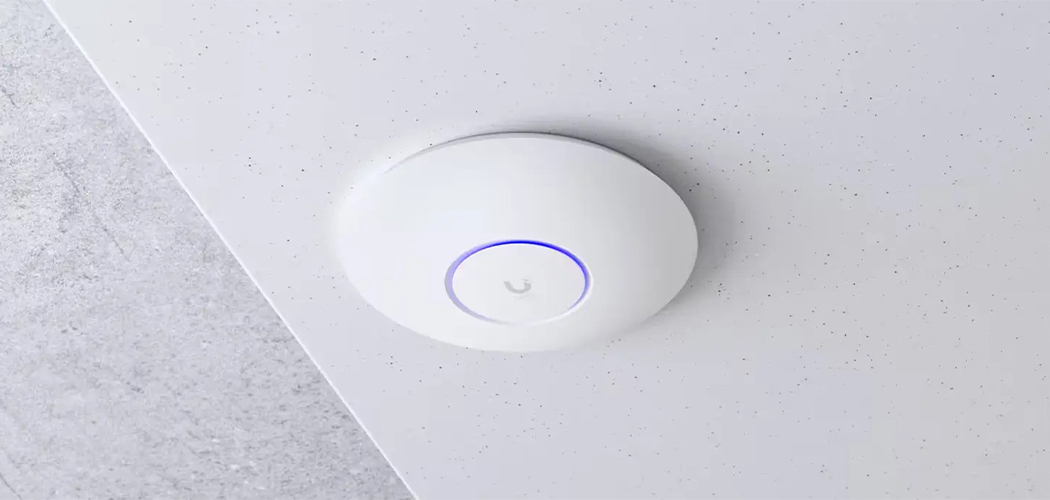

Celling Mounted

Add to Cart

Technical Specifications

Dimensions

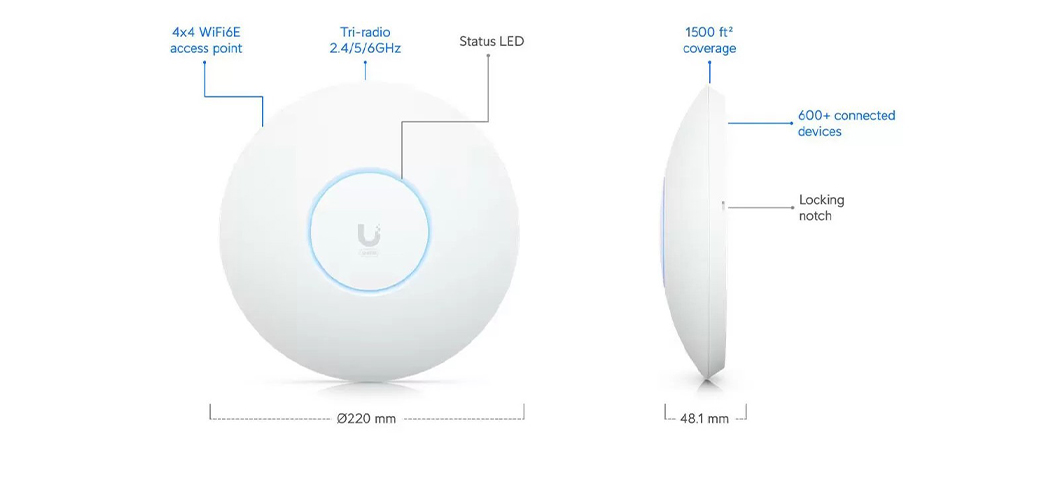

Ø220 x 48 mm (Ø8.7 x 1.9")

WiFi Standard

WiFi 6E

Spatial Streams

Coverage Area

140 m² (1,500 ft²)

Max. Client Count

600+

Uplink

2.5 GbE

Mounting

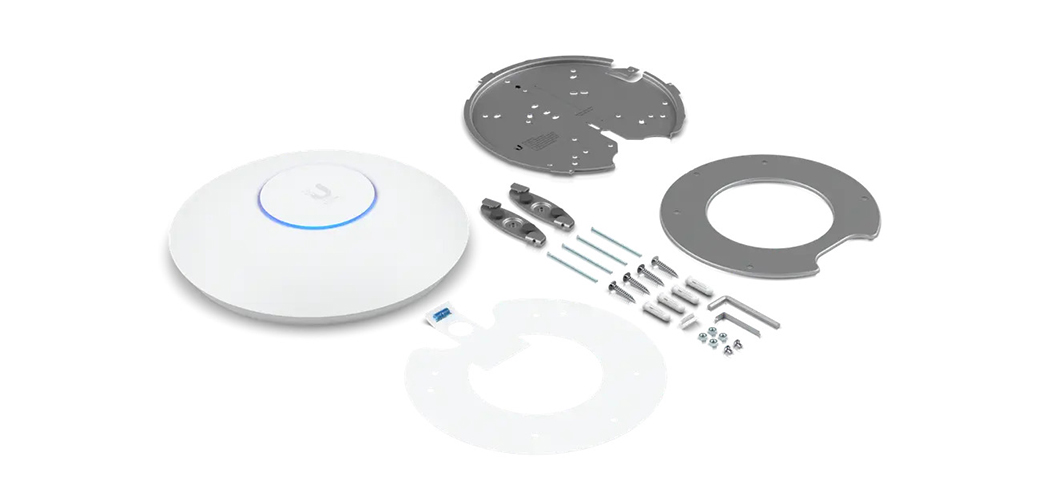

Ceiling, Wall (Pro Mount Included)

Power Method

PoE+

MIMO

6 GHz

4 x 4 (DL/UL MU-MIMO)

5 GHz

4 x 4 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz

4.8 Gbps (BW160)

5 GHz

4.8 Gbps (BW160)

2.4 GHz

573.5 Mbps (BW40)

Antenna Gain

6 GHz

6 dBi

5 GHz

5.3 dBi

2.4 GHz

3.2 dBi

Max. TX Power

6 GHz

26 dBm

5 GHz

26 dBm

2.4 GHz

22 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11ax (WiFi 6/6E)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Max. Power Consumption

22W

Supported Voltage Range

44—57V DC

Networking Interface

(1) 1/2.5 GbE RJ45 port

Weight

Device: 960 g (2.1 lb) With mount: 1.1 kg (2.4 lb)

Management

Ethernet Bluetooth

Enclosure Material

Polycarbonate, aluminum

Mount Material

Stainless steel (SUS304)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz (Depends on the regulatory region)

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Application Requirements

UniFi Network

Version 6.0.45 and later
