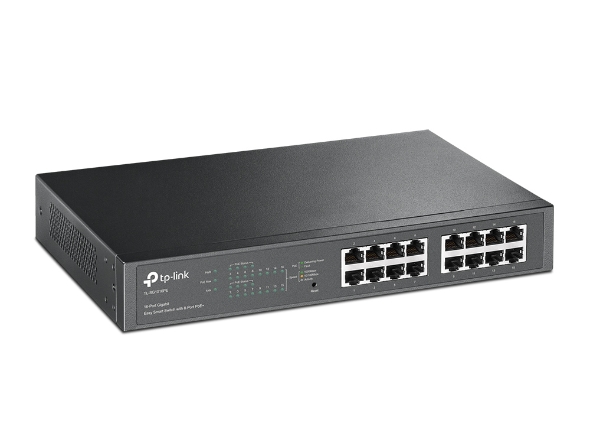

TP-LINK TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

Rs. 54,100.00

The TP-Link TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.

AVAILABILITY: In Stock
PRODUCT CODE: 100-10263
CATEGORY: Networking

1 Gigabit Ethernet

Manageable

PoE

16 / 18 - Ports

Add to Cart

Technical Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	1
Physical Security Lock	Yes
PoE Ports (RJ45)	Standard: 802.3 at (30W) PoE Ports: Port 1- Port 8 Total PoE Power Budget: 110W
Dimensions ( W x D x H )	11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
Mounting	13" and 19" 1U rack mountable
Max. Power Consumption	14.7W (no PD load) 131.4W (with 110W PD load)
Max. Heat Dissipation	50.2 BTU/h (no PD load) 448.4 BTU/h (with 110W PD load)

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1Mb
Jumbo Frame	9KB

SOFTWARE FEATURES
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management Features	Web-based GUI Easy Smart Configuration Utility POE Auto Recovery
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, RoHS
Package Content	TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
