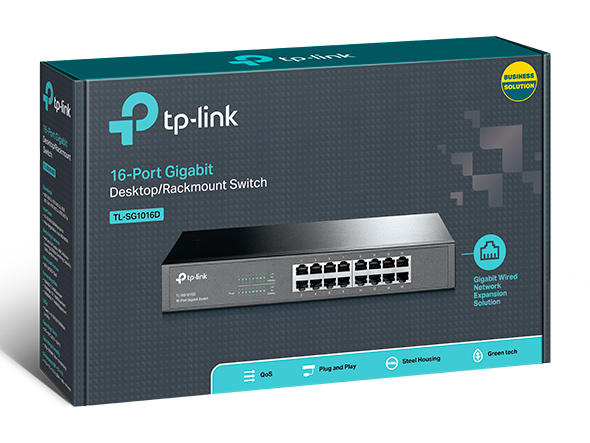

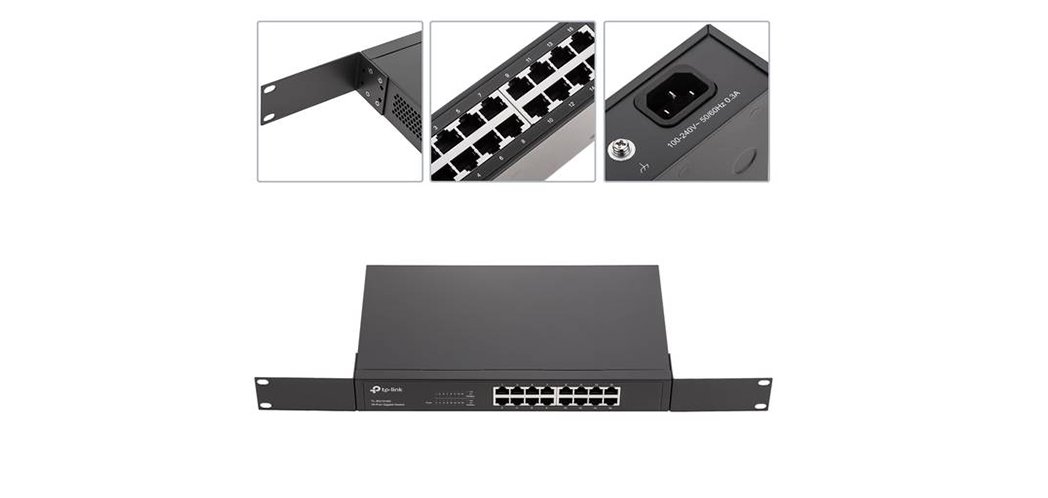

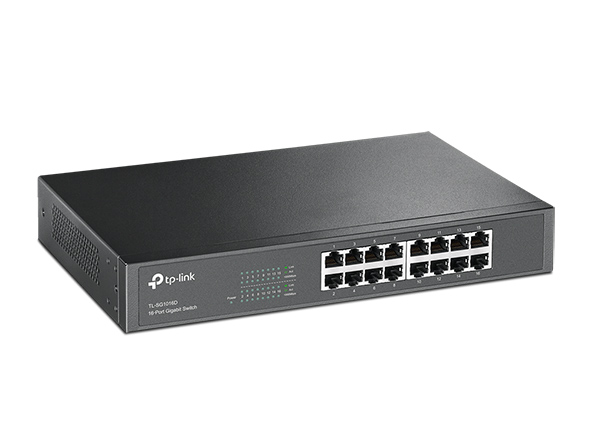

TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

Rs. 25,300.00

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.

AVAILABILITY: In Stock
PRODUCT CODE: 100-10186
CATEGORY: Networking

1 Gigabit Ethernet

Unmanageable

Non PoE

16 / 18 - Ports

Add to Cart

Technical Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface	16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	No

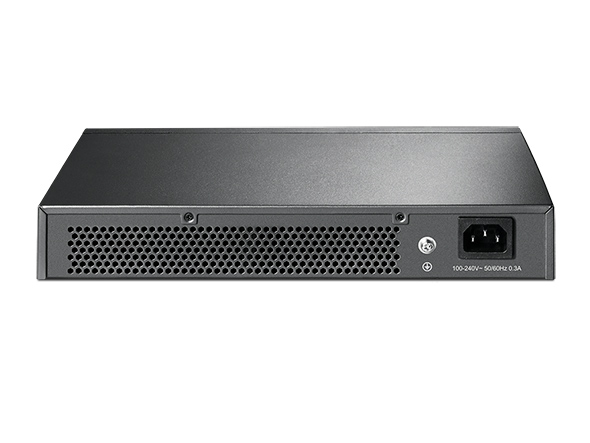

Power Supply	100-240VAC, 50/60Hz
Max. Power Consumption	Maximum: 9.26W (220V/50Hz)
Dimensions ( W x D x H )	11.67.11.7 in. (29418044 mm)
Max. Power Consumption	9.95W(220V/50Hz)
Max. Heat Dissipation	33.93BTU/h

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mpps
MAC Address Table	8K
Advanced Features	Isolation Mode: Ports 1-14 Loop Prevention: Ports 1-16
Jumbo Frame	10KB
Green Technology	Yes
Transmission Method	Store-and-Forward

OTHERS
Certification	FCC, RoHs

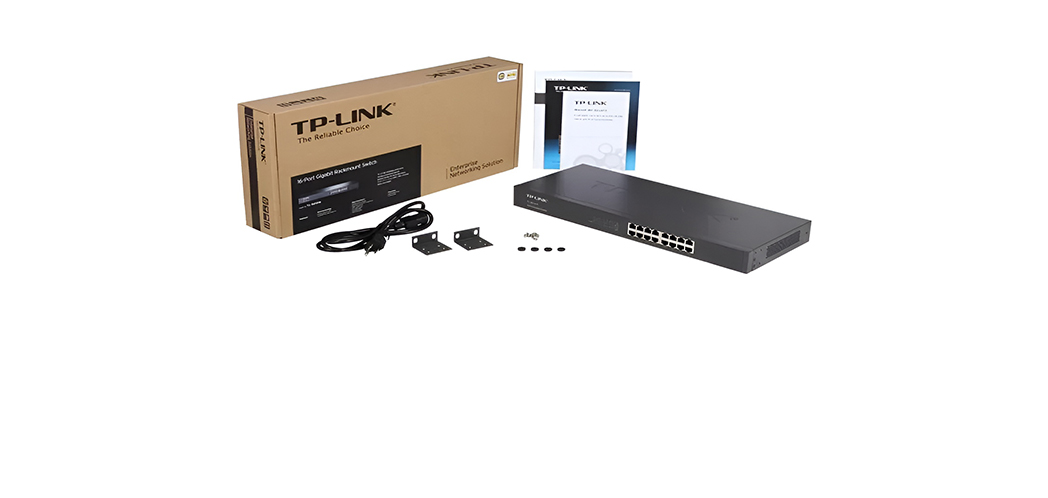

Package Content	16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
